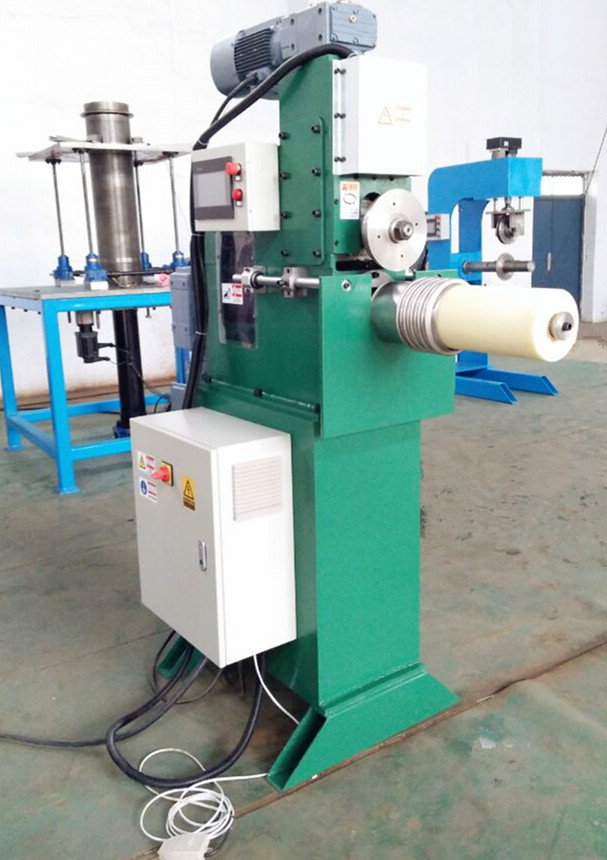

Automatic Metal bellows tangent cutting machine.

The metal bellows tangent cutting machine is used to cut the cuff sleeve/ tangent of metal bellows. This machine can be designed according to customer’s parametes requirements.

Advantage in technology:

Controlled by PLC, operation is simple and convenient.
Automatic cutting, very high production efficiency.
Safety, time saving, labor saving.
Driving methond: motor-driven.
Cutting speed and time can be adjusted.
The cutting tool is made of alloy tool steel, long service life

`TYPE`	`DN50-200`	`DN200-1200`	`DN800-3000`
`Max. single layer thickness`	`1.0mm`	`2.5mm`	`2.5mm`
`Total power`	`3kw`	`4.5kw`	`5.5kw`
`Weight`	`650kg`	`850kg`	`1550kg`
`PLC`	`Siemens`	`Siemens`	`Siemens`
`Size(LWH)`	`12506501425mm`	`16367001425mm`	`285116251425mm`

Get Our Service

Qinhuangdao Haizhi Technology Co., Ltd. provides customers with these services:

1. Design and manufacture of non-standard equipments according to the customer’s requirements.

2. Fully automated machines to produce metal bellows for compensators from tubes.

3. Fully automated equipments to produce metallic flexible hoses from pipes.
