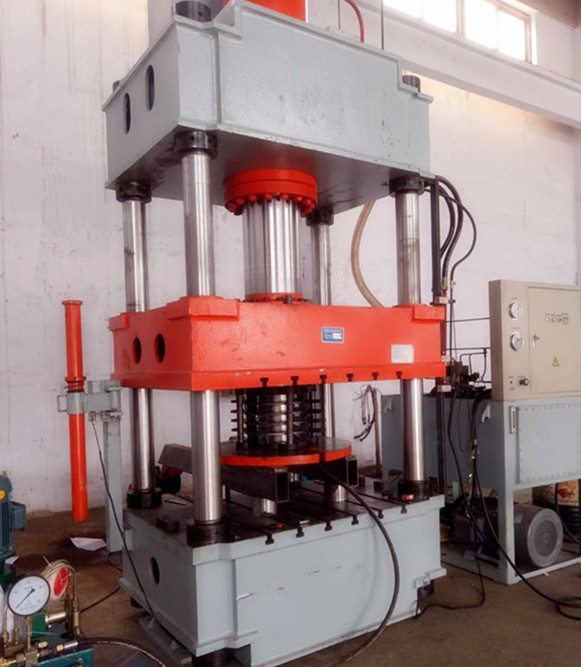

Hydraulic press.
The hydraulic press is used to make high quality metal bellows with good accurancy. It’s a good machine for production compensators with high precision. .
Advantage in technology:
- Using the advanced hydroforming methods.
- The completed metal bellows with high precision and quality.
- The material of forming tools are high strength die steel, long service life
- Many safety precautions to ensure the safety of personnel and equipment in the production process.
- This machine can be customized according to the customer's parameters.
| Specification | DN100-300 |
DN350-600 |
DN600-1200 |
|---|---|---|---|
| Max.corrugation height | 40mm |
75mm |
85mm |
| Max.wall thikness | 5layer*1mmm |
8layer*1mm |
8layer*1mm |
| Water supply pressure | ≤25Mpa |
≤25Mpa |
≤25Mpa |
| Tube length | ≤1500mm |
≤1500mm |
≤1500mm |
| Total power | 21kw |
25.5kw |
42kw |
| Size(L*W*H) | 1000*1000*3318mm |
1260*1200*4265mm |
2000*1800*4936mm |
| Weight | 8500kg |
14000kg |
23000kg |
Get Our Service
Qinhuangdao Haizhi Technology Co., Ltd. provides customers with these services:
1. Design and manufacture of non-standard equipments according to the customer’s requirements.
2. Fully automated machines to produce metal bellows for compensators from tubes.
3. Fully automated equipments to produce metallic flexible hoses from pipes.
