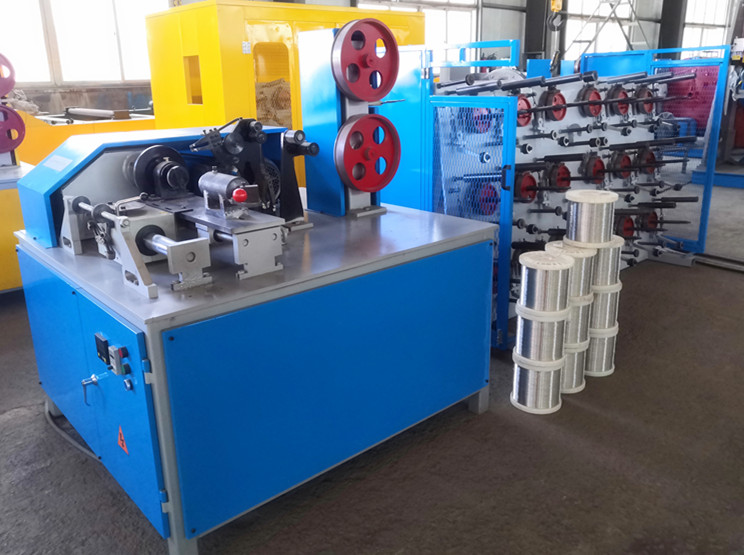

Steel wire bobbin winding machine
The Stainless steel wire bobbin winder is necessary for steel wire braiding machine. It is used to ply wire and fix it on the bobbins and then put on the spindles. The Steel Wire Rewinding Machine together with steel wire braiding machines are very good machines for the metal hose production. This Stainless steel wire bobbin winder will synthesize strands of 0.20-0.60mm. This machine is composed of transmission, pay-off, complete line, outgoing line, fine pitch adjustment and electrical control.
Technical parameters:
- Stainless steel wire diameter: 0.25-0.7mm.
- Number of wires: 12 pcs - 18 pcs.
- Rotation speed: 500-1000r/min.
SIZE |
HZ-12 |
HZ-15 |
HZ-18 |
|---|---|---|---|
Wire diameter |
0.25-0.7mm |
0.25-0.7mm |
0.25-0.7mm |
Number of strands |
12 |
15 |
18 |
Speed |
110-180m/min. |
110-180m/min. |
110-180m/min. |
Power |
1.1Kw |
1.5Kw |
2.2Kw |
Size(L*W*H) |
1800*1400*1300mm |
2100*1650*1450mm |
2400*1900*1500mm |
Weight |
1.3ton |
1.5ton |
1.8ton |
