Steel wire braiding machine - Haizhi Technology

Steel wire braiding machine for metal hose.

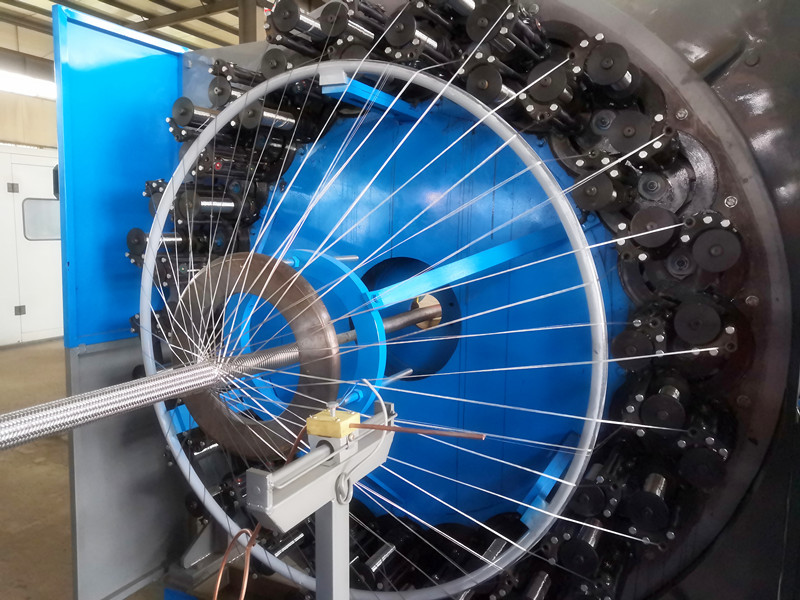

The steel wire brading machine uses a spindle to make a circular circular motion along the guide disk, and the wire is woven according to a certain rule. The spindle is equipped with a spring to make the steel wire have a certain tension, so that the steel wire is woven on the pipe body with a mesh-like skeleton layer, and the speed between the traction device and the knitting is adjusted to achieve the desired knitting angle.

Technical parameters:

• Braiding machine wire diameter:0.2mm to 0.8mm.
• No.of spindles:16 to 128 spindle braiding machine(16, 20, 24, 36, 48, 72, 80, 96, 102, 112, 128).
• Diameter: 4mm to 600mm.
• Material of wires: Braided material: stainless steel, galvanized carbon steel, copper-plated steel wire, cotton thread, polyester thread, polyester filament industrial filament.

SIZE	CBG-36 carrier	CBG-48 carrier	CBG-64 carrier	CBG-96 carrier
Braiding outside diameter	20-45mm	38-80mm	76-127mm	127-230mm
Rotation speed	10 r/min	7.5 r/min	4.6 r/min	3.6 r/min
Braiding angle	54°44′46’’	54°44′46’’	54°44′46’’	54°44′46’’
Pulling speed	380-1100mm/min	600-1350mm/min	750-1800mm/min	1000-1850mm/min
No.of carrier	36	48	64	96
Total power	5.5kw	7.5kw	11kw	25kw
Machine size(mm)	3000x1500x1700m	3000x1900x2200	4000x2380x2380	6650x3340x2700
Weight(Tons)	2.4	4.2	5.7	10.5
