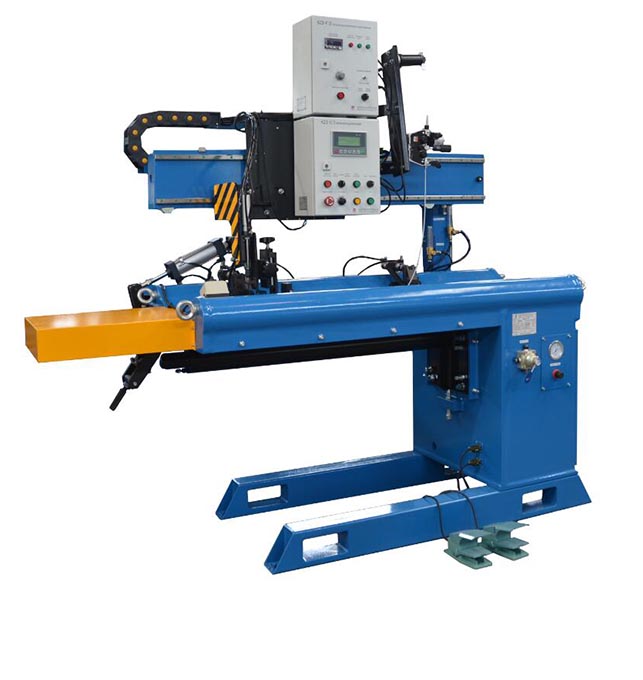

Longitudinal seam welding machine.

This longitudinal seam welder is controlled by PLC and has high automation,it is more convenient to operate, the quality of welding is good, it is an important equipment during the process of production of metal bellows expansion joints.

Product details:

  • You can choose gas shielded welding or argon arc welding according to your reuirements.
  • The minimum welding thickness starts from 0.5mm.
Model
ZF-500
ZF-1000
ZF-1500
ZF-2000
Voltage/fequency
220v/50Hz
220v/50Hz
220v/50Hz
220v/50Hz
Pressure(Mpa)
0.5
0.5
0.5
0.5
Max.effective traval distance
500mm
100mm
1500mm
2000mm
Welding speed(mm/min.)
1500-2000
1500-2000
1500-2000
1500-2000



Get Our Service

Qinhuangdao Haizhi Technology Co., Ltd. provides customers with these services:

1. Design and manufacture of non-standard equipments according to the customer’s requirements.

2. Fully automated machines to produce metal bellows for compensators from tubes.

3. Fully automated equipments to produce metallic flexible hoses from pipes.
