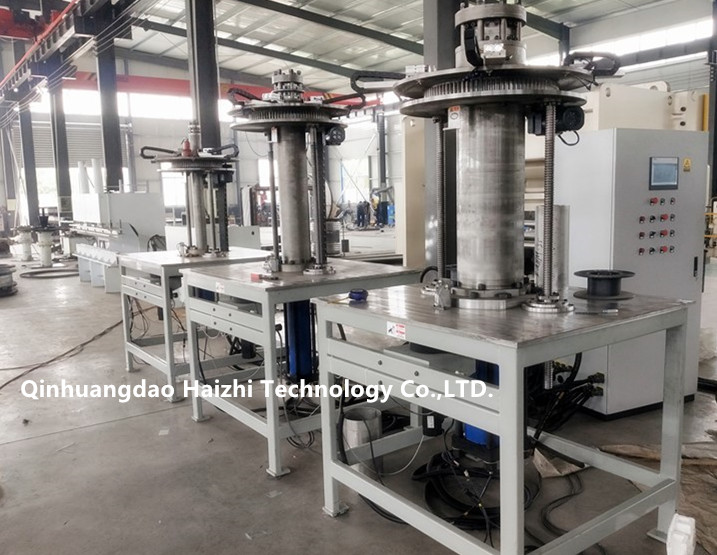

Automatic bellows forming machine.
The mechanical metal bellows forming machine is also called Automated punch former, it's a good machine for producing metal bellows expansion joints from single or multi-layer tubes, a wide production working range diameter from DN100mm to DN6000mm.
Advantage in technology:
- Adopting advanced bellow making technology, Siemens controller controlled, fully automated production.
- Hydraulically powered, fast forming speed, low noise.
- The material of forming tools are high strength die steel, long service life
- Many safety precautions to ensure the safety of personnel and equipment in the production process.
- This machine can be customized according to the customer's parameters.
| SIZE | DN100-1200 |
DN800-3000 |
DN2000-6000 |
|---|---|---|---|
| Thickness | 6layer*1mm |
8layer*1mm |
8layer*1mm |
| Expanding time | ＜20s |
＜30s |
＜40s |
| Corrugation height | 65mm |
85mm |
160mm |
| Tube length | 1500mm |
1500mm |
1500mm |
| Total power | 8.5kw |
13kw |
30kw |
| Size(mm) | 4500*1500*2516 |
2200*2200*4150 |
2700*2500*4680 |
| Weight | 4.2ton |
5.8ton |
8.5ton |
Get Our Service
Qinhuangdao Haizhi Technology Co., Ltd. provides customers with these services:
1. Design and manufacture of non-standard equipments according to the customer’s requirements.
2. Fully automated machines to produce metal bellows for compensators from tubes..
3. Fully automated equipments to produce metallic flexible hoses from pipes.
